Upfit your Mercedes-Benz Sprinter Van for the job.
Knapheide is a Master Upfitter for Mercedes-Benz. The utility bodies come installed at the Sprinter factory. With several different variations available, we are here to help you get your Mercedes-Benz Sprinter Van ready for the job with upfitter solutions from Mercedes-Benz of Jacksonville and Knapheide. Give us a call today to go over your options!

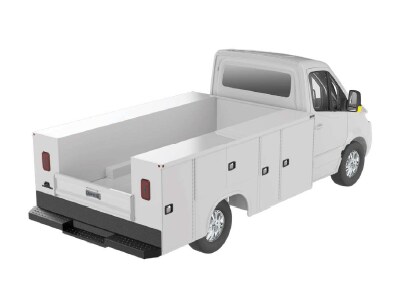

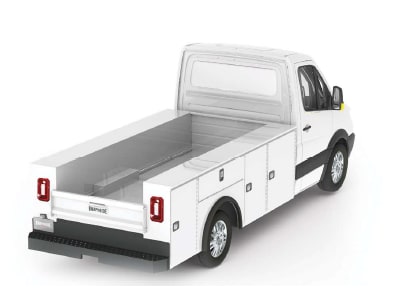

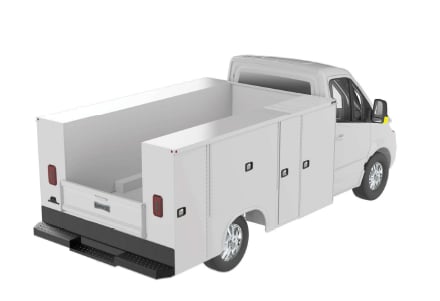

Mercedes-Benz Sprinter 144" WB Cab Chassis Service Body

With rugged steel construction and external storage for your tools and equipment, the service body is a key component for your day-to-day productivity.

The external compartments offer protection from outside elements and allow technicians to access their equipment without having to climb into the truck bed.

Staying organized both on and between job sites is important. Get maximum efficiency with a Knapheide Service Body.



Specifications:

Body Length: 11'
Body Height: 40"
Body Width: 78"
Compartment Depth: 14.5"
Body Weight: 1,538 lb.
Interior Clear Length: 133"
Interior Bed Width: 48"
Width Between Wheel Wells: 37"



Standard Features
  • Features 14-gauge, two-sided A-40 galvanneal steel shell
  • Exclusive "Return Flange" floor design provides support
  • Interior light guards protect recessed lighting and wiring
  • Continuous stainless steel hinges are pry-proof and corrosion resistant
  • Adjustable security ring strikers provide a weather-tight seal
  • Includes (11) 250-lb. capacity adjustable divider shelves, with (28) dividers
  • Double-spring over-center door retainer eliminates involuntary door swing
  • Features double-shell, 20-gauge two-sided A-40 galvanneal steel compartment doors
  • Automotive-quality, rotary-style latches make opening and closing easy
  • Interior cover protects internal latch from damage
  • Neoprene door seals protect compartments from the weather
  • Quick-mount installation allows for fast, safe mounting
  • Includes slam-lock tailgate with one-hand center release
  • Electrodeposition prime-paint system provides superior corrosion resistance


Specifications:
Body Length: 11'
Body Height: 46"
Body Width: 94"
Compartment Depth: 20"
Body Weight: 1,709 lb.
Interior Clear Length: 133"
Interior Bed Width: 54"
Width Between Wheel Wells: 37"

Standard Features
  • Features 14-gauge, two-sided A-40 galvanneal steel shell
  • Exclusive "Return Flange" floor design provides support
  • Interior light guards protect recessed lighting and wiring
  • Continuous stainless steel hinges are pry-proof and corrosion resistant
  • Adjustable security ring strikers provide a weather-tight seal
  • Includes (11) 250-lb. capacity adjustable divider shelves, with (28) dividers
  • Double-spring over-center door retainer eliminates involuntary door swing
  • Features double-shell, 20-gauge two-sided A-40 galvanneal steel compartment doors
  • Automotive-quality, rotary-style latches make opening and closing easy
  • Interior cover protects internal latch from damage
  • Neoprene door seals protect compartments from the weather
  • Quick-mount installation allows for fast, safe mounting
  • Includes slam-lock tailgate with one-hand center release
  • Electrodeposition prime-paint system provides superior corrosion resistance




Specifications:
Body Length: 11'
Body Height: 60"
Body Width: 94"
Compartment Depth: 20"
Body Weight: 1,987 lb.
Interior Clear Length: 133"
Interior Bed Width: 54"
Width Between Wheel Wells: 37"
Standard Features
  • Features 14-gauge, two-sided A-40 galvanneal steel shell
  • Exclusive "Return Flange" floor design provides support
  • Interior light guards protect recessed lighting and wiring
  • Continuous stainless steel hinges are pry-proof and corrosion resistant
  • Adjustable security ring strikers provide a weather-tight seal
  • Includes (11) 250-lb. capacity adjustable divider shelves, with (28) dividers
  • Double-spring over-center door retainer eliminates involuntary door swing
  • Features double-shell, 20-gauge two-sided A-40 galvanneal steel compartment doors
  • Automotive-quality, rotary-style latches make opening and closing easy
  • Interior cover protects internal latch from damage
  • Neoprene door seals protect compartments from the weather
  • Quick-mount installation allows for fast, safe mounting
  • Includes slam-lock tailgate with one-hand center release
  • Electrodeposition prime-paint system provides superior corrosion resistance

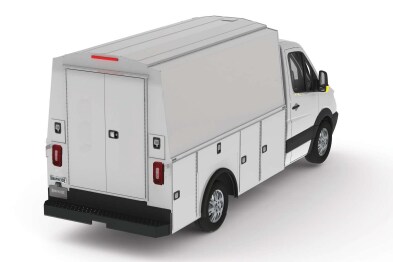

Mercedes-Benz Sprinter 144" WB Cutaway Chassis KUVcc Body

The style and function of a KUV, designed for a cab chassis: the KUVcc is built to get the job done.

Providing both enclosed cargo and internal compartment storage, the KUVcc gives you the most efficient and secure storage possible.

Get the use of a truck and function of a KUV all-in-one with the KUVcc.




Specifications:
Body Length: 11'
Body Height: 90"
Body Width: 78"
Compartment Depth: 13"
Clear Door Width: 45"
Clear Door Height: 61"
Interior Clear Height: 70.5"
Interior Clear Length: 132"
Body Weight: 2,323 lb.
Interior Floor Width: 48"
Width Between Wheel Wells: 37"
OAL: 246"
OAH: 108"
OAW: 83"


Standard Features
  • Double panel rear cargo doors lock and seal into the body frame. These 20-gauge galvanneal steel doors have nitrogen gas struts, slam latches
  • Two conduit chutes to transport copper pipes, PVC, and conduit
  • Master Locking System for peace of mind - locks down all of the side compartments in one move
  • Includes (11) 250-lb. capacity adjustable divider shelves comprised of spangles galvanized steel, with divider slots on 4" centers and (28) dividers
  • Vertical compartment doors employ double-spring over-center retainers for elimination of involuntary swing
  • Neoprene door seals protect compartments from the weather
  • Continuous stainless steel hinges are pry-proof and corrosion-resistant
  • Features 14-gauge, two-sided A-40 galvanneal steel shell
  • Flat panel space provides rolling billboard to promote business
  • Two interior dome lights in cargo area with light switch inside the cargo doors
  • Spacious cargo area for transporting oversized tools and equipment
  • 9"x30" glass window in front bulkhead positioned to line up with the cab rear window for visibility
Other features not shown:
  • All compartments can be locked independently for maximum security
  • Interior light guards provide protection for recessed lighting and wiring package
  • Electrodeposition prime-paint system provides superior corrosion resistance
  • Complete undercoating provides an additional layer of corrosion protection
